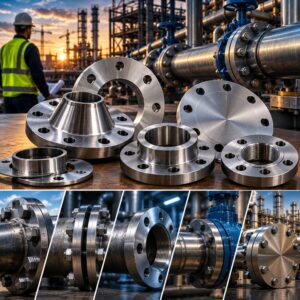

Understand the types of industrial flanges with DS Pipe & Steel Supply.
Flanges are essential components in many industrial piping systems, providing a practical way to connect pipes with valves, pumps, equipment, and other sections of a system. Unlike permanent welded connections, flanged connections can be disassembled when inspection, maintenance, or replacement is necessary.
Understanding the types, pressure classes, and applications of flanges can help contractors, engineers, and purchasing teams select components that match the requirements of the piping system. The product experts at DS Pipe & Steel Supply can help you determine which flanges are required for your project.
What Is a Flange?
A flange is a component designed to create a bolted connection between piping and other equipment or piping components. Flanges typically have a flat surface with bolt holes arranged around the perimeter. A gasket is placed between the mating flange faces to help create a sealed connection when the assembly is bolted together.
Flanges are available in different materials, dimensions, pressure ratings, and configurations. The correct selection depends on the piping system and the conditions under which it will operate.
Common Types of Flanges
One of the first considerations when reviewing the types, pressure classes, and applications of flanges is the flange design itself. Different types are intended for different installation and service requirements.
- Weld neck flanges are designed to be welded directly to the pipe. Their tapered hub helps provide a gradual transition between the pipe and flange, making them commonly used in systems exposed to high pressure, elevated temperatures, or significant stress.
- Slip-on flanges slide over the pipe and are typically welded in place. They can offer a straightforward installation option for many lower-stress applications.
- Blind flanges do not have a center opening. Instead, they are used to close the end of a pipe, nozzle, or piece of equipment. A blind flange can also allow future access if the system needs to be extended.
- Threaded flanges have internal threads that connect to threaded pipe without requiring a weld. They can be useful in applications where welding is undesirable or impractical.
- Socket weld flanges allow the pipe to be inserted into a recessed area of the flange before being welded. They are often used with smaller-diameter piping systems.
Understanding Pressure Classes
Flange pressure class is another important part of the selection process. Common ASME pressure classes include 150, 300, 600, 900, 1500, and 2500.
The class number is not simply a maximum pressure rating in psi. Actual allowable pressure depends on factors such as material, temperature, and applicable standards. As operating temperature increases, the allowable pressure for a particular flange may decrease.
For this reason, selecting a flange based solely on the class number is not enough. Project specifications, applicable standards, operating conditions, and material requirements should all be reviewed.
Where Are Flanges Used?
Flanges have applications across numerous industries. Industrial facilities use them in process piping, water systems, chemical processing, power generation, and manufacturing operations. They are also found in HVAC systems, municipal infrastructure, and commercial mechanical installations.
Their ability to create strong, serviceable connections makes flanges particularly useful where piping systems may need to be inspected, repaired, modified, or expanded over time.
The environment also matters. Applications involving corrosive fluids, high temperatures, high pressures, or demanding operating conditions may require specific flange materials and designs.
Matching the Flange to the Piping System
Selecting the correct flange requires attention to more than size. Pipe diameter, wall thickness, material, pressure and temperature requirements, connection method, gasket selection, and mating components all need to work together.
A mismatch can create installation problems, leaks, or compatibility concerns. Reviewing the complete system before ordering helps ensure that the flange is appropriate for the intended service.
Source Flanges From an Experienced Supplier
Understanding the types, pressure classes, and applications of flanges makes it easier to approach procurement with the right questions. Instead of selecting a flange based only on dimensions, project teams can consider the complete operating environment and connection requirements.
DS Pipe & Steel Supply provides flanges and other piping components for industrial, commercial, and construction applications. With experience supplying steel pipe, fittings, valves, and related products, DS Pipe & Steel Supply can help customers coordinate compatible materials for their projects.
When the right flange is matched to the right application, it becomes more than a connection point—it becomes an important part of a reliable, maintainable piping system.
